TECHNICAL PARAMETERS：

Key Applications / Application Scenarios
This machine is widely used across various plastic processing industries for recycling production waste:

• Film & Flexible Packaging Production: Recycling edge trim, startup scrap, and rejected rolls from PE, PP, and BOPP film production.
• Injection Molding: Regrinding and pelletizing sprues, runners, and defective injection-molded parts.
• Blow Molding: Recycling scrap from bottle and container production.
• Extrusion: Reprocessing purgings and off-spec sheet/film materials.
• Nonwoven & Textile: Recycling waste from PP nonwoven and raffia production.
• Biodegradable Materials: Processing PLA and PBAT film waste into reusable granules.

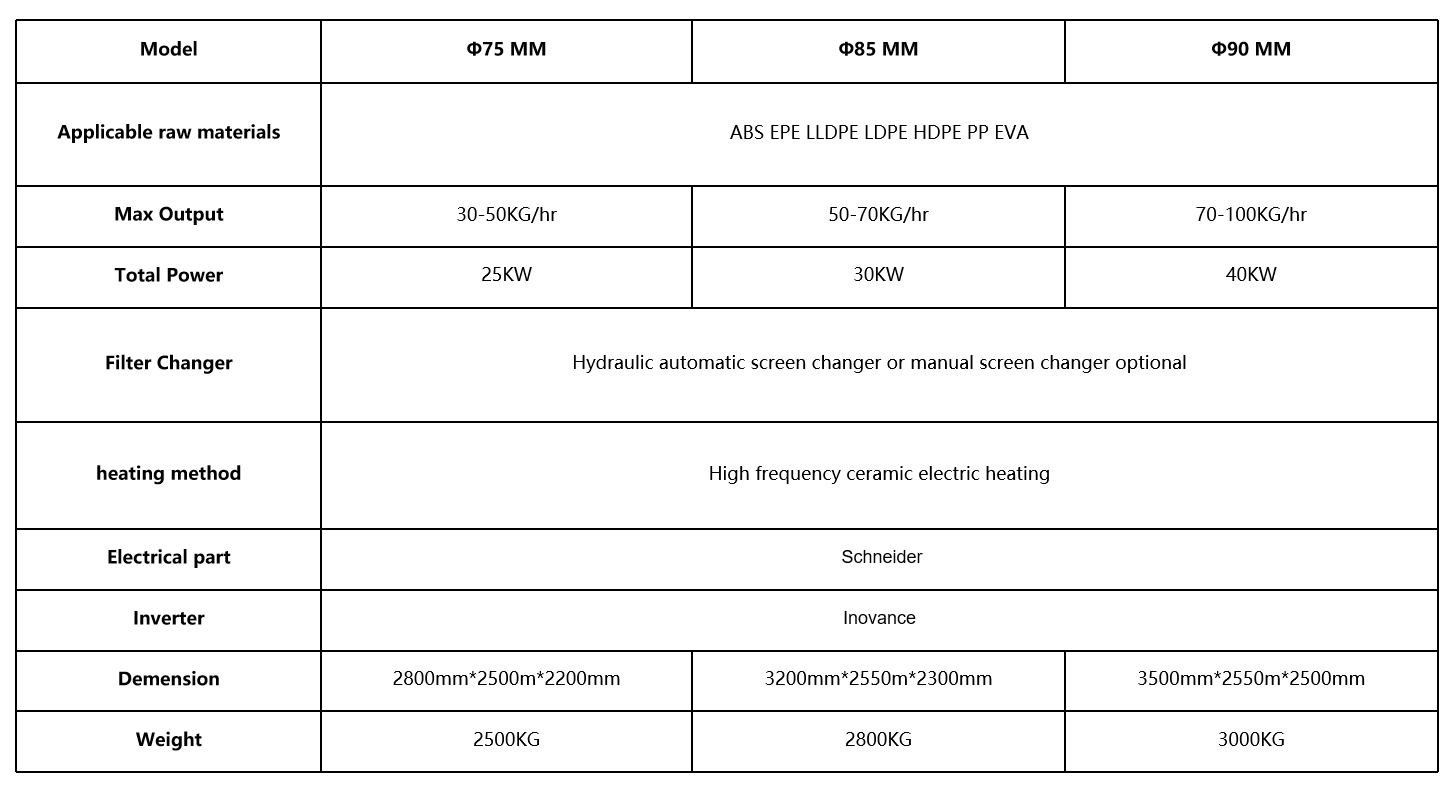

Technical Parameters

Technical Notes:

• Output Capacity: Ranges from 68 kg/h for smaller models to over 1200 kg/h for high-capacity industrial systems.
• Energy Efficiency: Advanced models achieve energy consumption as low as 0.2-0.3 kWh/kg, significantly reducing operating costs.
• Screw Speed: Typically 10-100 r/min for optimal material processing.
• Certification: CE and ISO9001:2008 certified for international compliance.

Standard Configuration

1. Single-Screw Extruder: Heavy-duty extruder with a screw made of 38CrMoAlA material for durability and wear resistance. Available with L/D ratios from 22:1 to 35:1.
2. Automatic Temperature Control System: Ensures precise temperature management throughout the extrusion process for consistent pellet quality.
3. Hydraulic Screen Changer: Quick motor-operated filter-screen-replacing unit for continuous operation without production stoppage. Available in double-position plate or piston types.
4. Die-Face Pelletizing System: Water-ring die-face cutting system that produces uniform, high-quality pellets with excellent appearance.
5. Vacuum Degassing System: Removes moisture and volatiles from the melt, ensuring dense, porosity-free pellets.
6. PLC Control System: User-friendly HMI touchscreen interface for one-button start/stop and precise parameter adjustment.
7. Cooling & Drying System: Water cooling trough followed by a centrifugal dryer for efficient pellet cooling and drying.

Optional Equipment

• Compacting Feeder: For processing light materials like film scrap.
• Two-Stage Extrusion System: For heavily printed or contaminated materials.
• Strand Pelletizing System: Alternative pelletizing method for specific material requirements.

Key Advantages

• High Output: Designed for continuous 24/7 operation with stable, high-volume production.
• Low Energy Consumption: Energy-efficient design reduces operational costs.
• Labor-Saving: Highly automated system minimizes manual intervention.
• Versatile Material Compatibility: Processes a wide range of plastics including PE, PP, LDPE, HDPE, PET, ABS, PA, PVC, and PLA.
• Superior Pellet Quality: Produces full, even pellets without porosity, suitable for direct reuse in production.
• Easy Maintenance: Quick-access design for cleaning and knife replacement.

Customization Services
We offer OEM and customization services to meet specific production requirements, including screw configuration, barrel setup, feeding and venting modes, screen changing mechanisms, and control systems.

Application：

During the production of vest bags or certain industrial bags, plastic film, and other materials, there will be some degree of waste generation. For example, the fertilizer that is cut off by the vest punching tool, or the scrap material from machine adjustments, or incorrect-specification plastic film, all require a recycling granulator to be processed into plastic granules for reuse!
